Description

Description:

Basic

information

Item No.: 18102

Model:1/18

Speed:40km/h

Product color: blue and white/red

Power system

Servo: 5-wire, 17g

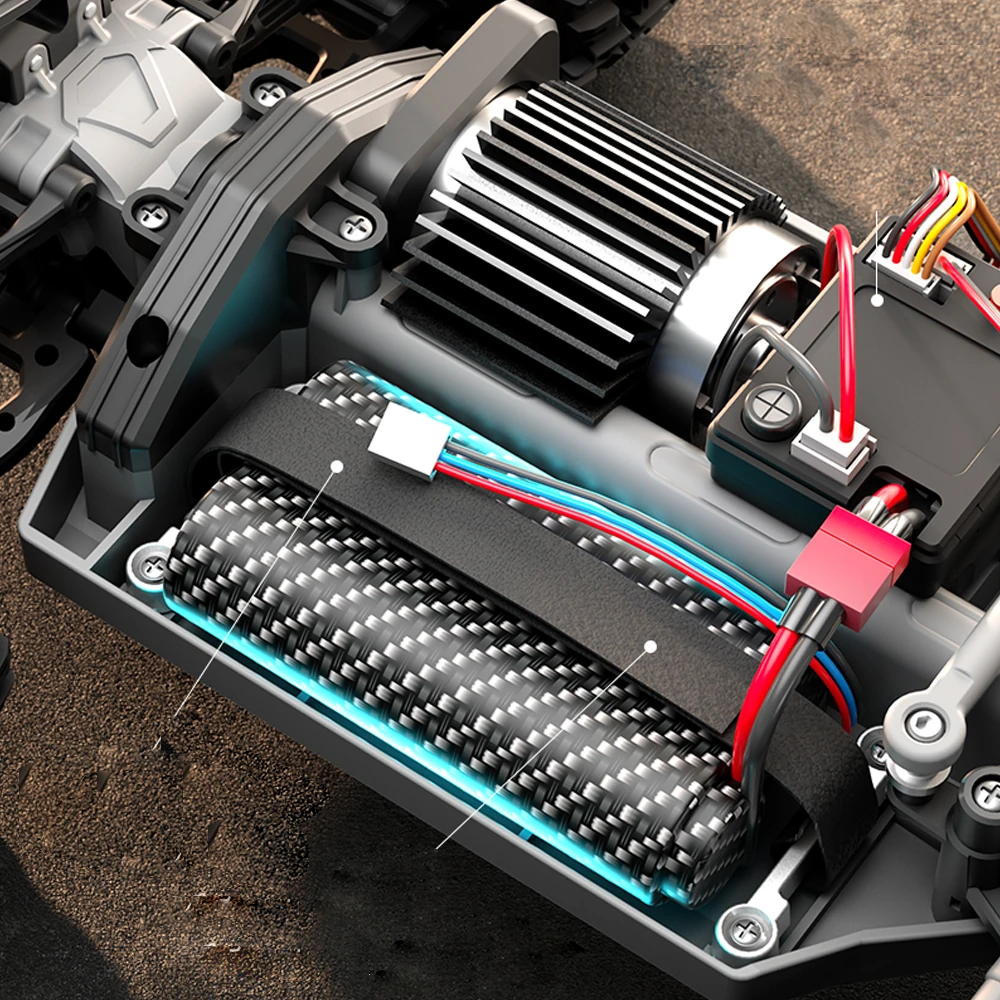

Motor: 380 carbon brush magneto

ESC/receiver: 25A 2S integrated control splashproof

Transmitter

Frequency:2.4 GHZ

Battery: 3* “AA” need to be purchased separately

Remote control category: full-proportional synchronous control system gun control

Battery:

7.4V 1500mAH lithium-ion battery T plug

Charging: USB cable charger

others

Charge time:4-4.5 hours

Using time:30 minutes continuous full speed running

Control distance:≥80m

Product material: hardware/electronics/plastic

Steering gear:17G five-wire steering gear



Function:

1. Adopting simulation structure design, it has the control feeling of a real car, realizing full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn.

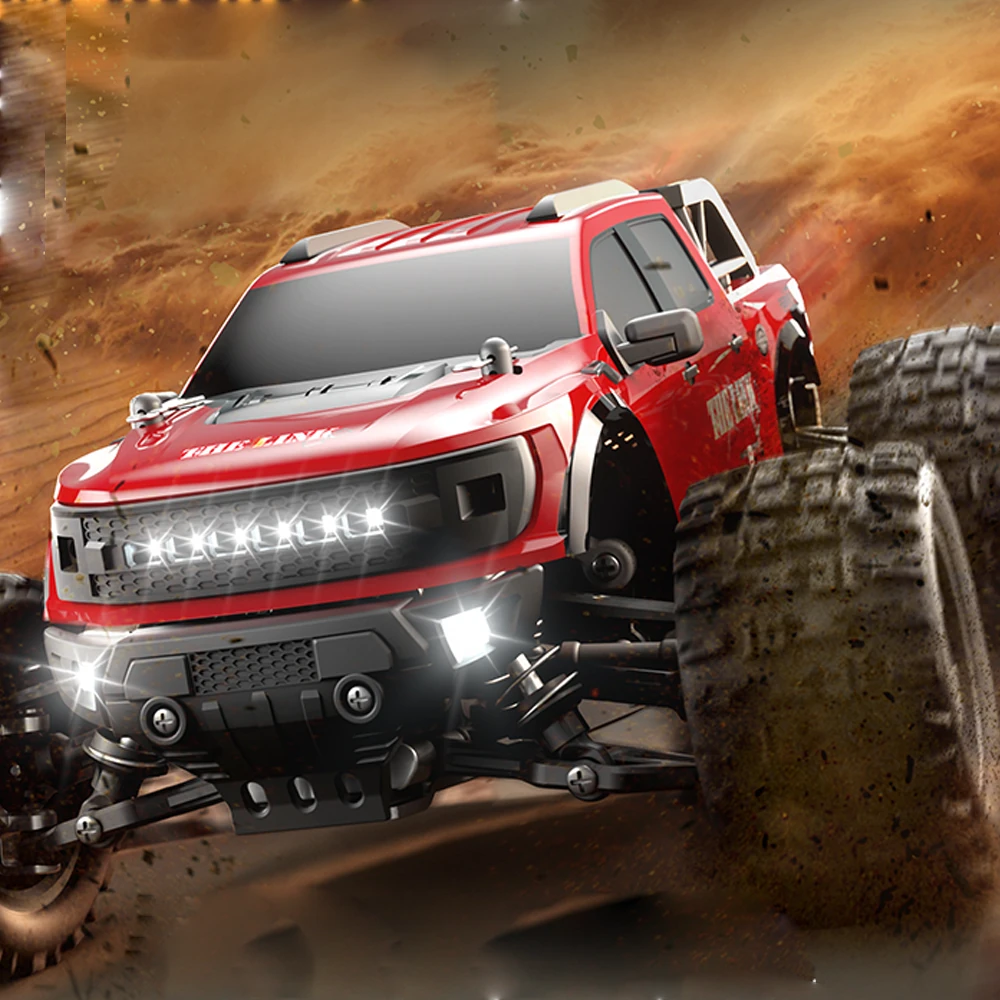

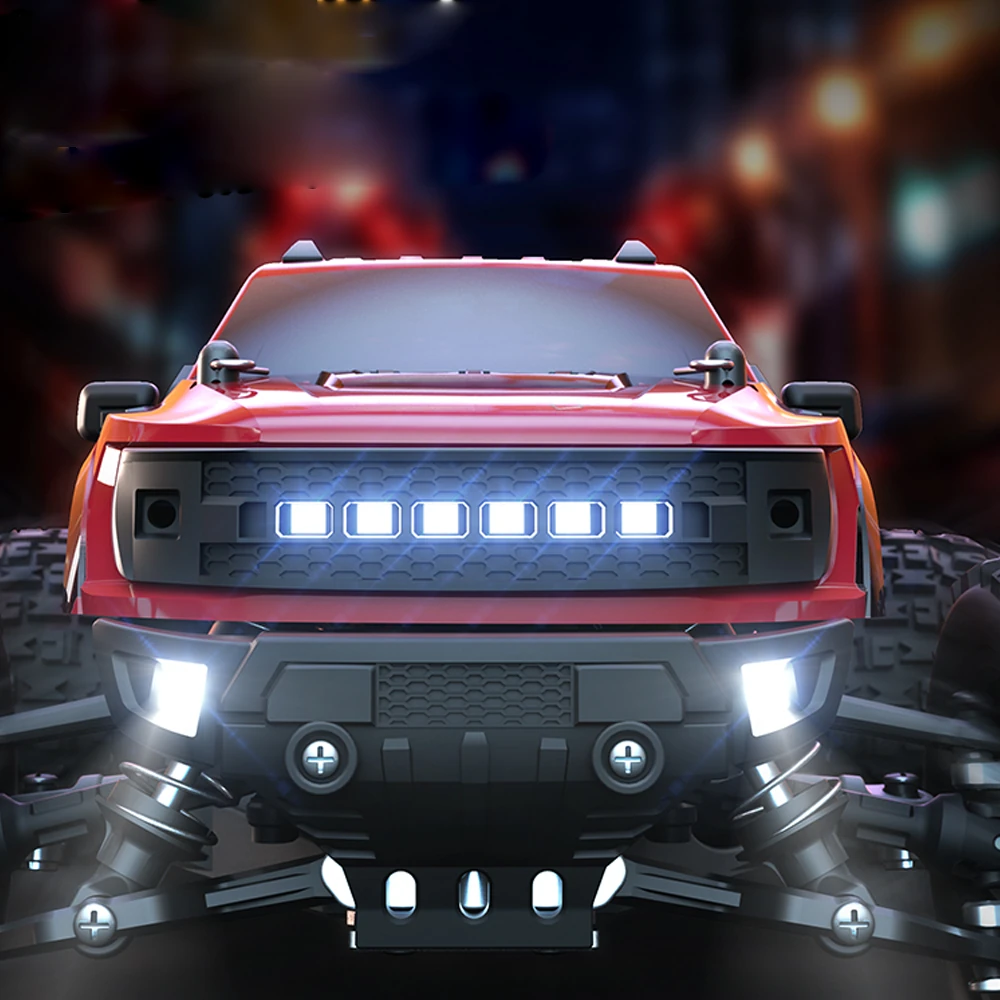

2. Equipped with LED headlights; three gear modes: always on, slow flash, fast flash.



Dimension

Wheelbase: 165mm

Track: 155mm

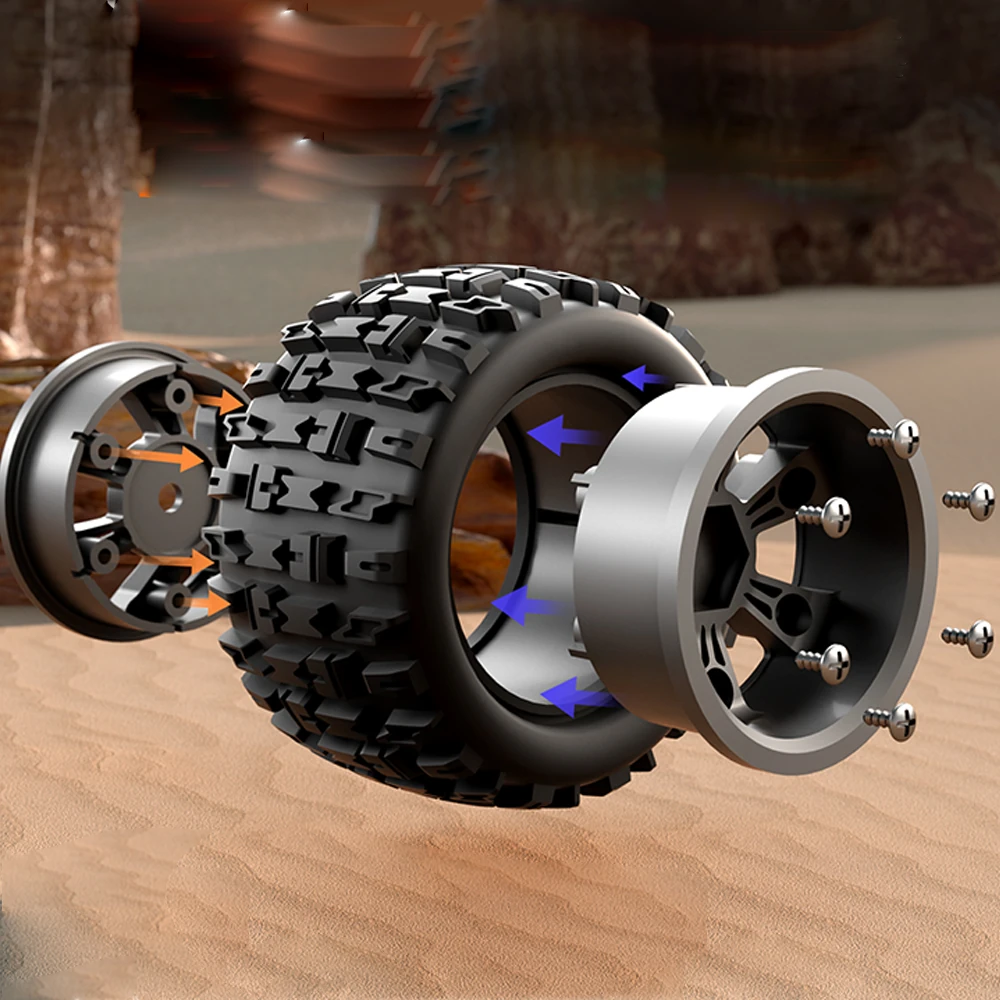

Wheel diameter: 67mm

Weight:0.75Kg

Package weight:1.5kg

Remote control size: 12.6*8.2*18.5cm

Product size: 25*20*12cm

Box size: 26.3*16.5*22cm

 Features:

1. It adopts simulation structure design, has the control feeling of real car, realizes full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn;2. Applicable sites: flat land, sand, mud, grass.3. Four-wheel drive: front and rear upright spring shock absorber, double wishbone independent suspension system;4. Remote control system: 2.4G full-proportional synchronous remote control system. Full-proportional throttle/steering;5. Electric adjustment: 2.4G splash-proof four-way 30A integrated electric adjustment/receiver;6. Drive shaft structure: front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;7. Servo parameters: five-wire 17G servo;8. Battery parameters: 7.4V, 18650-1500mAh Li-ion battery T plug;9. Ball bearings: The whole car uses 15 ball bearings;10. Metal parts: metal underbody reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm bracket, metal middle drive shaft;11. Car shell: The car shell uses high-toughness explosion-proof PVC car shell; the car shell comes with anti-lost silicone buckle;12. Lighting: Equipped with LED headlights; three gear modes: always on, slow flash, fast flash;13. Other equipment: equipped with head-up wheels;14. Other equipment: simulated tires with strong grip;

Protection measures:

1. Charging protection: constant current and constant voltage balanced charging, protection against battery overcharge and overcurrent.

2. Motor anti-stuck protection: When overloaded, the motor stops working.

3. High temperature protection: When the working temperature is higher than the set temperature, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.

4. Electric low voltage power-off function, the battery is lower than about 6.3-6.4V, and the power is automatically cut off to prevent the battery from being over-discharged and damaged.

Package included:

1X RC Car

1X Transmitter

1X Chinese and English manual

1X lithium battery

1X USB charger

1X shock absorption adjustment buckle

1X metal pin

1X cross screwdriver
